PES Pleated Membrane Cartridge Filter
PES Cartridge Filters are made of Polyethersulfone with Uniform pore distribution to ensure maximum performance in Bacterial retentions. Its upstream & downstream polyester support ensures resistance to pressure shocks. Polyethersulfone membrane is hydrophilic in nature, it allows easy integrity testing for all applications where daily controls are required. The membrane possesses broad chemical compatibilities and contains no surfactants. PES Cartridge filters are produced in controlled environments & under stringent production conditions that ensure filter quality & cleanliness. Currently serving Waterloo, Guelph, Cambridge, and London for beer filter needs.
Features
PES Membrane is inherently hydrophilic with excellent hydrolytic stabilIty and chemical compatibility
Specific pore size distribution for full bacterial retention to ensure sterile effluent even under process upsets
Low pressure drop and high flow rate due to high filtration area of 0.56m² Per 10” cartridge
Autoclave or in situ team sterilization features
Integrity test is possible
FDA Approved
Applications
Sterilization filtration in pharmaceutical and biological industry
Sterilization filtration for drinking water, beverage, wine and various liquids
Terminal filtration and point-of-use filtration for high pure water and deionized water
Purification filtration for various chemical raw material and medicament
Much finer pre-filtration
Specifications
Sizes: 5”,10”,20”,30”,40” Long
Micron Rating: 0.22, 0.45 Micron
Filtration Area: More Than 0.56 metres squared Per 10” cartridge
Outer Diameter: 2.7"
Inner Diameter: 1"
Maximum Differential Pressure: 45 psid
Maximum Operating Temperature: 175 ºF
Applicable PH Value: 1.0-14.0

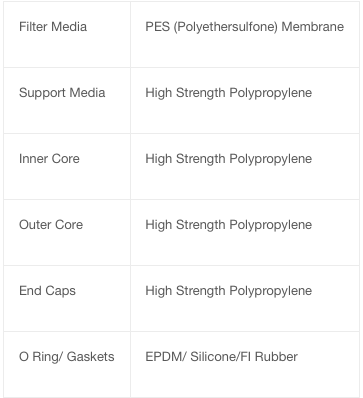

Construction
